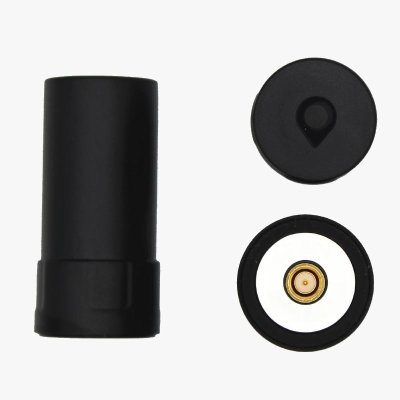

Toknav THA 9603A Antenna GNSS

Small Drone Antenna
The THA-9603A is a compact external drone antenna that covers GPS L1/L2/L5/L-Band, GLONASS L1/L2, BDS B1/B2/B3, and Galileo E1/E5a/E5b signals. It is widely used in industries such as surveying, mapping, and navigation, and is particularly suitable for various applications in lightweight drones, including aerial, remote telemetry, disaster monitoring, traffic patrol, and security surveillance.

• Four-system full-frequency coverage
• Centimeter-level accuracy
• Apply D-QHA technology
• Excellent satellite reception

Feature :

• GNSS Tracking : GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
• Axial Ratio : 3dB
• LNA Gain : 33±2dB
• Humidity : 95% non-condensing
• Protection : IP65
• Size : Φ33.2mm*45.8mm
• Weight : 20g
